MiniPier for iOptron Small to Medium Mount

Home > Products > Accessories > Tripods and Piers >

Mount, tripod, tri-pier, hand set not included.

Price: $189.00

Availability: Usually Ships in 1 to 2 Business Days
Product Code: 8044

Description

Technical Specs

Support Documents

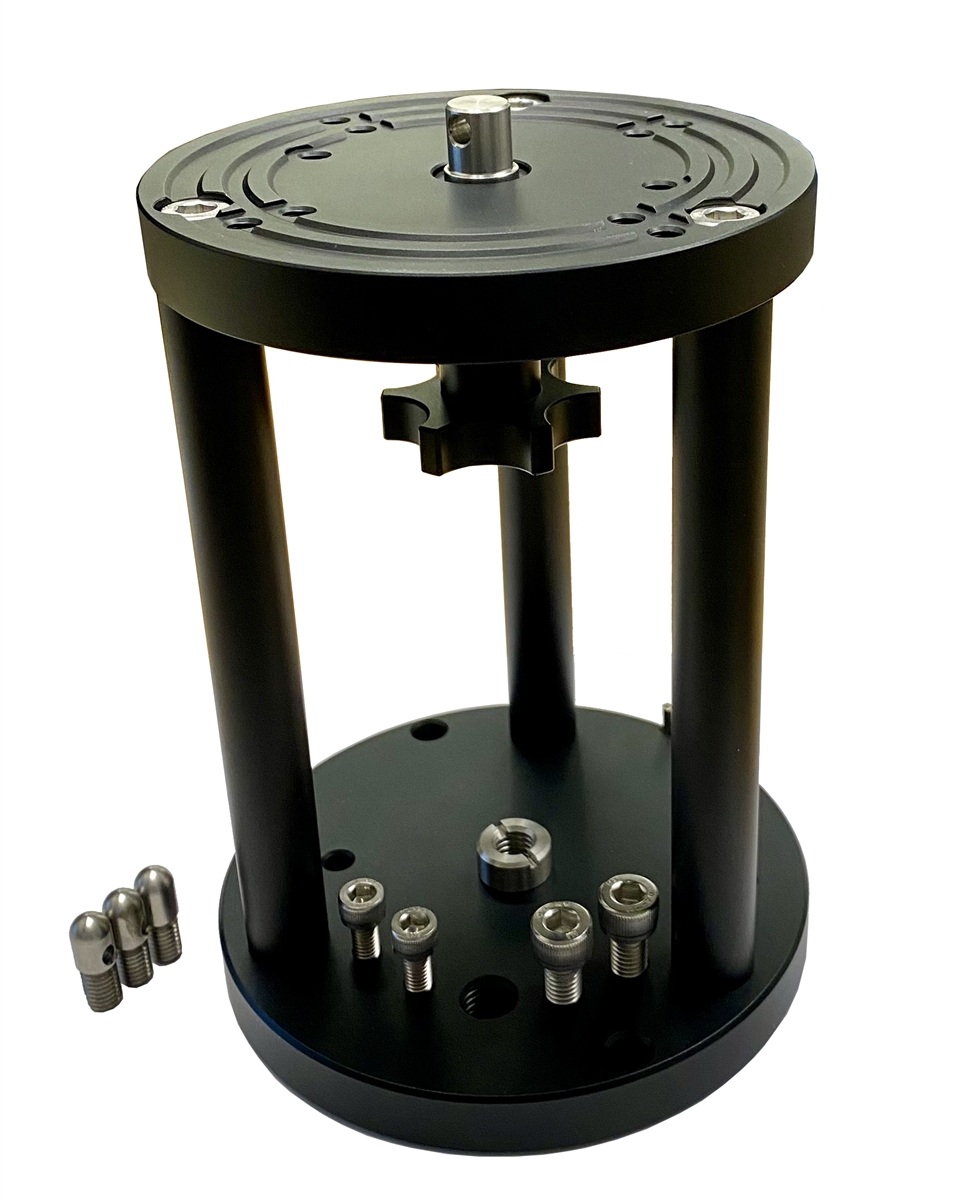

This new versatile iOptron® 8044 mini-pier is designed to accommodate multiple iOptron GOTO mounts and tripods. The 8044 eight inch extension allows compact to midsized iOptron® mount heads to attach to iOptron® tripods from formally non compatible lines. With a little do it yourself modification it can also attach iOptron® mounts to non iOptron supports.

Features

Versatile design to adapt most iOptron mounts and tripods
CNC machined
3-point leveling (for 8061A carbon fiber tripod only)

The following mounts can be mounted onto the MiniPier:

HAZ31/HAZ46 (3/8”-16 locking knob)
CEM26/HEM27/GEM28/HAE29 (2X M6 screws, 83mm separation, 1X center post)
CEM40/HAE43/HEM44/GEM45 (2X M6 screws, 103mm separation, 1X center post)
HEM15/HAE16/HAE18 ultra compact strain wave gear mount (3/8”-16 locking knob)
SkyTracker Pro/SkyGuider Pro (3/8”-16 locking knob)
SkyHunter (3/8”-16 locking knob)
Camera and other equipment with a 3/8”-16 mounting hole

The MiniPier fits these iOptron tripod/pier:

Carbon fiber tripod (8061/8061A)
CEM26/GEM28 tripod (2X M6 screws, 83mm separation)
CEM40/GEM45/iEQ30 tripod (2X M6 screws, 103mm separation)
CEM70/CEM60/iEQ45 tripod (2X M8 screws, 120mm separation)
CEM25/ZEQ25 tripod (3/8-16 thread adapter)
3211 SmartEQ/SGP/STP/SkyHunter tripod (3/8-16 thread adapter)
Tri-pier (M6 and M8screws)
Other tripod with 3/8”-16 mounting screw or threaded mounting holes matching the plate mounting holes

DOES NOT fit onto the following pier:
