OTAs (optical tube assemblies)
>
Versa 108mm ED APO
Alternative Views:
Price:
$
1,248.00
Availability:
Discontinued
Product Code:
6102
Discontinued
Description
Technical Specs

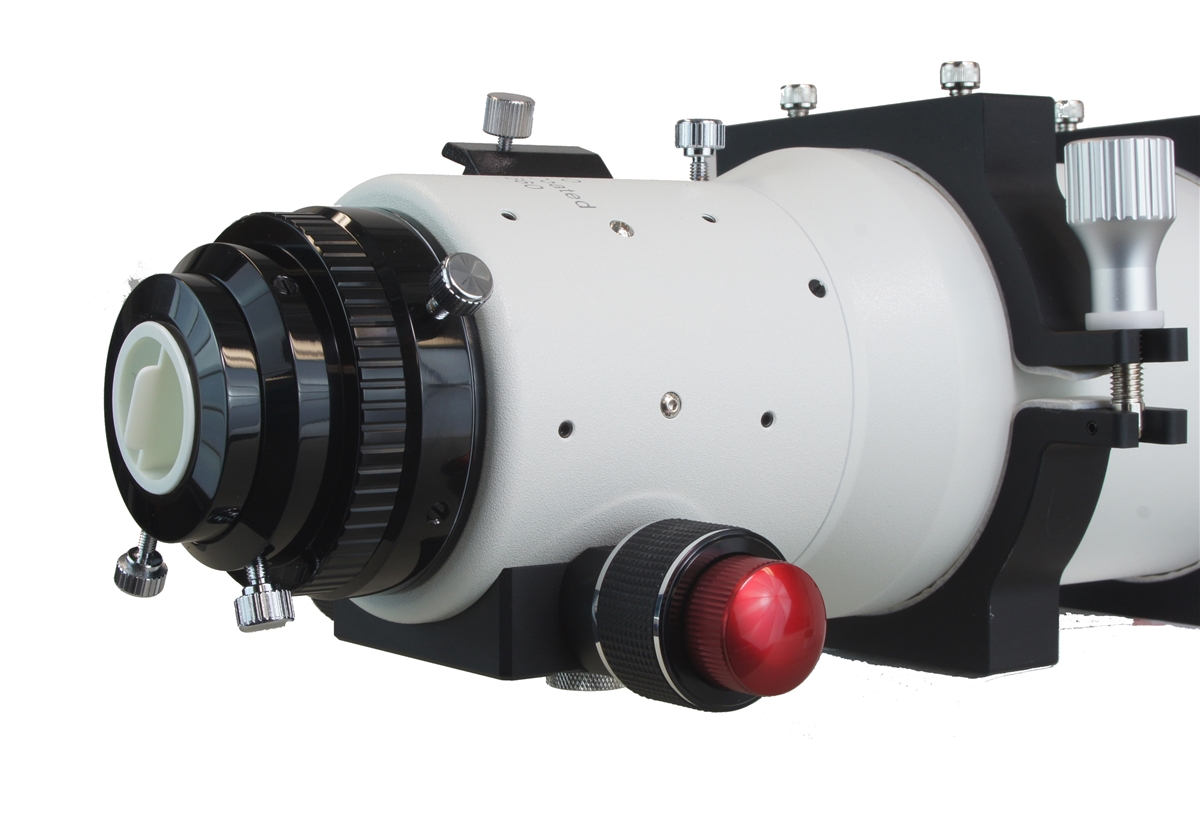

This relatively fast (f6) air-spaced 108mm Apochromatic doublet refractor delivers a crisp, clean, sharp image with outstanding color correction. Fully multi-coated optics along with optimally placed internal knife edge baffles contribute to the high contrast image expected from refractors of this stature. It’s all metal CNC body and retractable dew shield construction gives an accurate initial impression of quality and upon touch the smooth motion of its patented rack and pinion hybrid drive dual speed focuser re affirms that impression. The 360 degree rotating dual speed hybrid rack and pinion focuser has 2 separate points of rotation allowing the user to set the focus knobs position and still rotate the diagonal or imaging array independently. Its patented focus lock, secures the draw tube in two directions ensuring a slip free hold even with heavy complex imaging set-ups. The 2” focus collar and supplied 1.25” adapter feature non-marring brass compression rings to firmly hold a diagonal or accessory in place. The versa also includes 2 solid mounting rings with a vixen style dovetail plate and a hard case.
Lens Type
2 elements air-spaced ED S-FPL51 glass
Optical Coatings
Fully multi-coated
Clear Aperture
108mm
Focal Length
660mm
Focal Ratio
f/6
Focuser
2.7 ", 360° Rotatable 1:11 Rack & Pinion Hybrid dual speed focuser
Tube Length
21.5"/547mm (with dew shield retracted), 26.7"/678mm (with dew shield extended)
Tube Weight
10 lbs
Accessories
114 Tube ring + 1.25" Adapter brass compressing ring
Finder Scope
Optional (mounting saddle included)
Packaging
Aluminum hard case
Case Dimensions
28” x 9” x 9”
Gross Weight
22 lbs
Warranty
One year limited
Features
108mm extra-low dispersion(ED)glass air-spaced doublet objective
Fully multi-coated optics
Precision CNC machined all-metal body and retractable dew shield
660mm focal length for wide field views
Fast f/6 focal ratio, excellent color correction

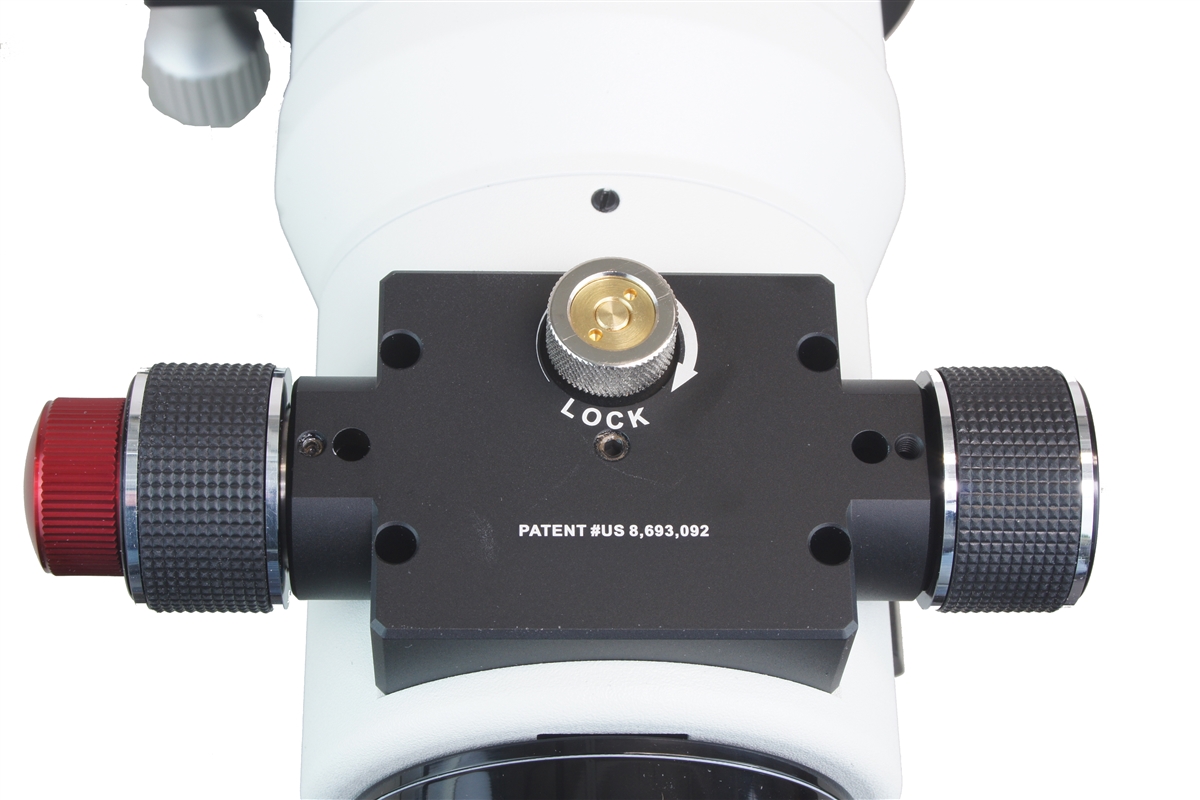

Patented hybrid 2.7” rack & pinion dual speed focuser with two direction focus lock
Multiple 360° focuser rotation points for added versatility
Brass compression rings in both the 2” focuser collar and 1.25” acc. adapter
Retractable dew shield
Solid mounting rings with a vixen style dove tail plate
Accessory shoe for a finder scope etc
Hard case with die-cut foam interior
One year limited warranty
