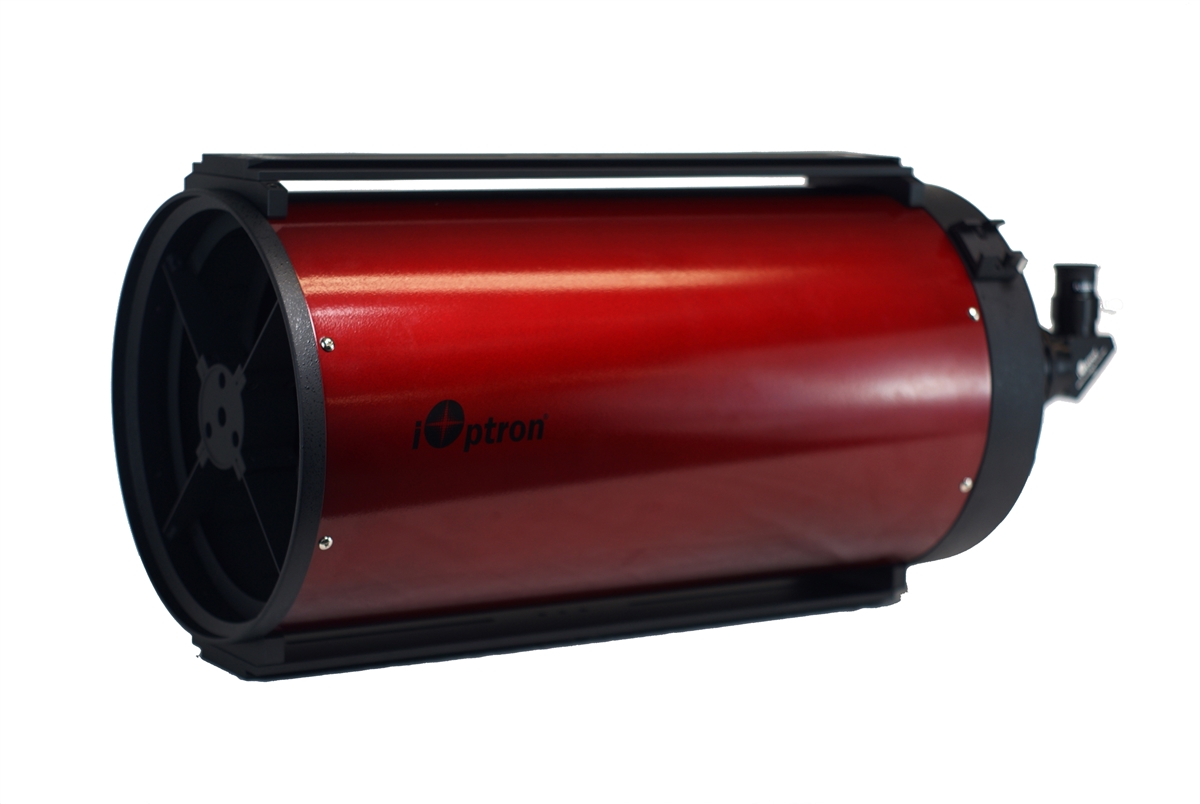

Photron™ 10 inch Ritchey-Chrétien Telescope (RC10)
finderscope, diagonal and eyepiece not included
Alternative Views:
Price:
$
3,218.00
Availability:
Usually ships in 2 business days
Product Code:
6113
RC Add-ons:
No modifications
iEAF/EAF compatible focuser [Add $48.00]
Description
Technical Specs
Support Documents

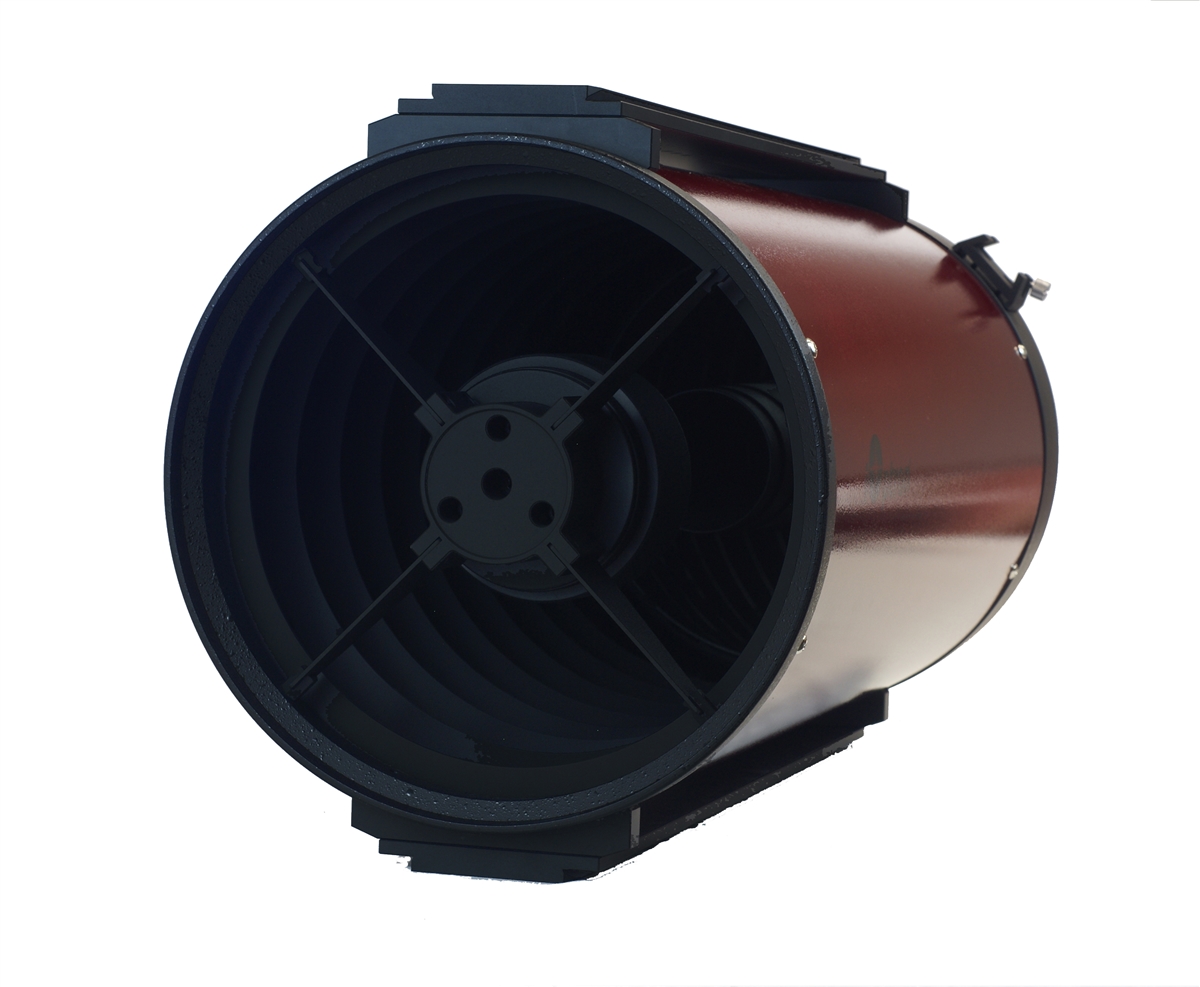

The iOptron® Photron™ Ritchey-Chretien design telescopes, feature low thermal expansion quartz primary and secondary mirrors with 93-96 percent reflective dielectric coatings. The RC optical design delivers coma, spherical and chromatic aberration free results, perfect for color or monochrome imaging. A fixed position primary mirror eliminates image shift that occurs from focusing with other telescope designs. The iOptron RC10 comes with a 3" dual-speed linear-bearing Crayford focuser. Three focuser extension rings are provided for a “flex-free” solid extension as a means to take up any unneeded back focus. Its steel tube is equipped with 10 knife edge baffles to diminish contrast reducing stray light, improving the instrument in both visual and imaging uses. A RC10 model comes with top and bottom dovetail plates adding rigidity to the tube while providing attachment points for the mount and other accessories to be used.
Add $48 for electronic automatic focuser (e.g., 8453 iEAF) compatibility.
Optical Design
Ritchey-Chretien
Clear Aperture
250mm
Focal Length
2000mm
Focal Ratio
f/8
Resolving Power
0.46 arc seconds
Limiting Magnitude
14.7
Highest Useful Magnification
295X
Secondary Mirror Size
110mm in diameter
Focuser
10:1 Crayford dual-speed
Focuser size
3.3”
Dovetail Bar
Losmandy-style
Mounting Bar (Top)
Losmandy-style
Finderscope Base
Yes
Finder scope
Optional
Tube material
Steel
Tube Length
28.4”
Tube Weight
35 lbs
OTA Primary Mirror Cooling Fan
Yes (three built-in fan, with battery holder)
Other Accessories
2” to 1.25” compression ring adapter;
1" long extension tube X2
2" long extension tube X1
Gross Weight
48 lbs
Warranty
One year limited
Manuals:
Photron RC telescope operation manual
Electric focuser installation and operation manual
Features
Coma free, chromatic aberration-free, spherical aberration-free optics
250mm (10") optical aperture
2000mm focal length
f/8 focal ratio
Fixed primary
Low thermal expansion quartz mirrors
Multiple Knife-Edge Baffle System
3.3" Dual-dpeed Crayford focuser
Finder scope base and two dovetails bars
Optional finder scope, diagonal and 1.25" eyepiece
Optional iOptron Electronic Focuser (
#8451
)
Package includes
#6113
10" RC OTA only
OTA w/3" dual-speed Crayford focuser
2X25mm, 1X 50mm focus extension
1.25" accessory adapter
Top and bottom Losmandy dovetail bars
